Transition Scout Alloy MTB Frameset Classy Black. 140mm trail bike that will awaken your inner child. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective
Transition Scout Alloy MTB Frameset Classy Black. 140mm trail bike that will awaken your inner child. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective
Transition

Transition Scout Alloy MTB Frameset Classy Black

£2,299.00
Size Guide
Transition Scout Alloy MTB Frameset Raspberry Red
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We hope you are extremely happy with your Windwave purchases. However, if for any reason you are not completely satisfied then you have 30 days from the date on which the goods were received to return any item for an exchange or a full refund.

For any Returns or Warranty enquiries, you will need authorisation from our Returns Manager to be considered prior to shipping. Please contact hollie@windwave.co.uk for details. Hollie will arrange a return and an email containing a returns form will be sent to you. Please complete the form, attach a copy of your proof of purchase, and place them in with your product.

We recommend that you take your package to a post office and send via recorded delivery (or similar), as Windwave cannot accept responsibility for any loss or damage that may occur during transit of your parcel to our offices. We advise that you email us the tracking number so it can be added to your claim for reference.

It normally takes us about 10 working days to process a return once the returned items have been received into our warehouse. Upon inspection of the returned product, Windwave will issue a refund or process an exchange. A return confirmation email will be sent to you once your return has been processed.

In the unlikely event that an item is returned to us in an unsuitable condition, Windwave reserves the right not to refund the item and arrange to send the item back to you at your expense.

Please note that we can only offer exchanges for a like-for-like product in a different colour or size. Please also bear in mind that we cannot guarantee that a replacement product will be in stock when your return is processed. We therefore we recommend placing a new order and returning the original product for a refund.

Please note that returned products cannot be dropped back at our warehouse or offices. All returns must be sent via post.

For further information please see our Terms and Conditions.

Transition Scout Alloy MTB Frameset Classy Black

Season:2023

Brand:Transition

Code:KLByssalCLA.TUOCS.22.SF.R

Transition Scout Alloy MTB Frameset Classy Black

Transition Scout Alloy MTB Frameset Classy Black. 140mm trail bike that will awaken your inner child.The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective

The Composed Sport Bike

Hop on the Scout and you're immediately transformed into a projectile.

The Scout will awaken your inner child. Manual here, scrub that, skid there, pedal up this. Freedom to boost everything in sight, overshoot every landing without a care, mixed with nose bonking and hooting your way down the trail. Sporty, but just as eager to tackle bigger terrain. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective. Pedal up and repeat.

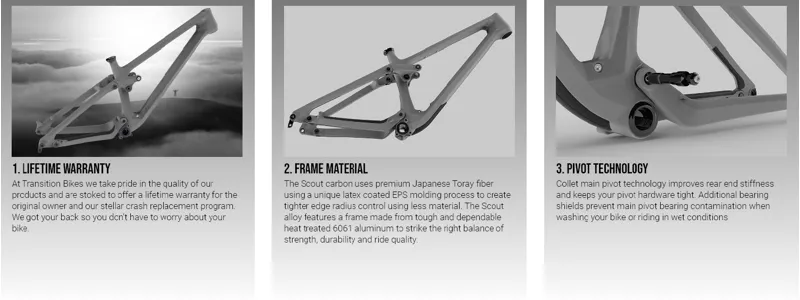

Lifetime Warranty
At Transition Bike we take pride in the quality of our products and are stocked to offer a lifetime warranty for the original owner and our stellar crash replacement program., We got your back os you don't have to worry about your bike.

Pivot Technology
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

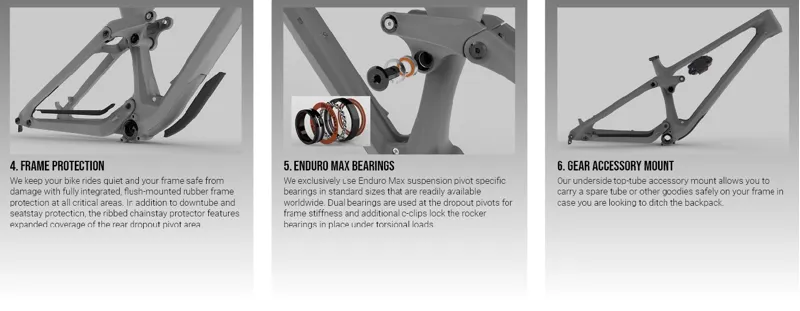

Frame Protection
We keep your bike rides quiet and your frame sage from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seat-stay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

Badass Bearings
We exclusively use Enduro MAX suspension pivot specific bearings in standard sizes that ar readiliy available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under the torsional loads.

Gear Accessory Mount
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely in your frame incase you are looking to ditch the backpack.

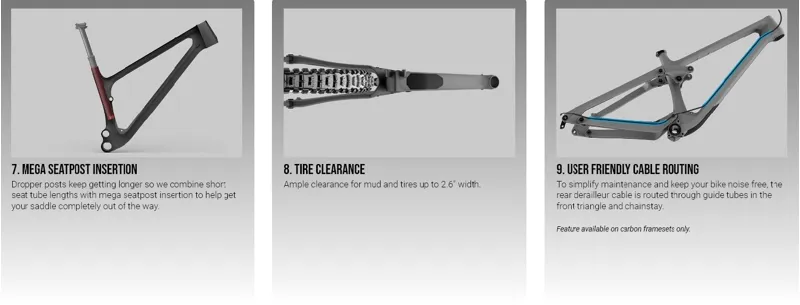

Mega Seatpost Insertion
Dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.

User Friendly Cable Routing
To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

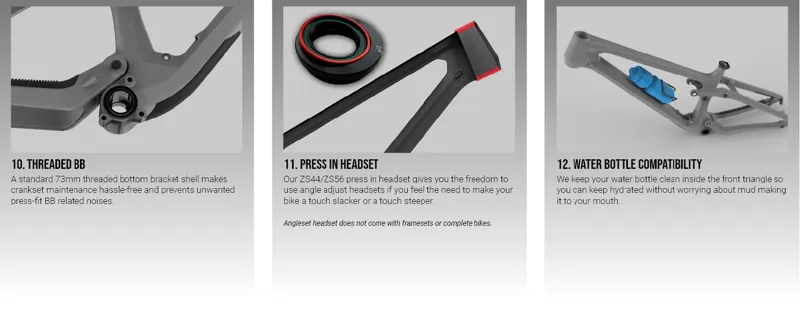

Threaded BB
A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related noises.

Press-in Headset
Our ZS44/ZS56 press in headset gives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or a touch steeper.

Angleset headset does not come with framesets or complete bikes.

Water Bottle Compatibility
We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.


Technical Information

Frame Specifications

Frame Alloy
FrameScout Alloy 140mm
Rear ShockFox Float X Performance Elite 2 Position
Weight8.9 lbs / 4.06kg (Size MD w/shock)


REAR TRAVEL:140mm (Compatible with 150mm)
FRONT TRAVEL:150mm
WHEEL SIZE:27.5"
SIZES:Carbon: XS, SM, MD, LG, XL
Alloy: XS, SM, MD, LG
COLORS:Carbon: Midnight Blue, Olive Green
Alloy: Classy Black, Raspberry Red
FRAME BEARINGS:2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN:545mm
FORK OFFSET:37mm
REAR SHOCK SIZE:205mm x 57.5mm (Compatible with a 205mm x 62.5mm shock)
SHOCK HARDWARE:Trunnion Mount Top / 25mm x 8mm Bottom
HEADSET (TOP):44mm Zero Stack
HEADSET (BOTTOM):56mm Zero Stack
BB SHELL:73mm BSA Threaded
CHAINLINE:52mm
REAR BRAKE MOUNT:180mm Post Mount
REAR AXLE:Carbon: Syntace X12 148, with a 1.0mm thread pitch
Alloy: Transition Axle For UDH, 12mm x 148mm Spacing
ISCG TABS:ISCG05
SEATPOST DIAMETER:31.6mm
SEAT CLAMP:Carbon: 37.0mm
Alloy: 34.9mm
MAX SEATPOST
INSERTION:		Carbon: XS 210mm | Small 220mm | Medium 250mm | Large 290mm | XL 320mm
Alloy: XS 230mm | Small 240mm | Medium 270mm | Large 310mm
MAX CHAINRING SIZE:34T Single Ring
MAX TIRE SIZE:27.5 x 2.6
REAR SHOCK SAG:140mm/57.5mm: 15-19mm (26-33%)
150mm/62.5mm: 16-20mm (26-32%)
Sizing Information

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

Scout Geometry

XSSMMDLGXL
A. Reach410mm435mm460mm485mm510mm
B. Stack577mm590mm604mm617mm631mm
C. Effective TT Length534mm564mm593mm623mm652mm
D. Seat Tube Length350mm360mm390mm430mm460mm
E. Effective ST Angle78.2°77.7°77.2°76.8°76.4°
Saddle Height For Effective St Angle560mm600mm660mm720mm780mm
Actual ST Angle72°72°72°72°72°
Seat Tube Offset At Bb63mm63mm63mm63mm63mm
F. Head Tube Length95mm110mm125mm140mm155mm
G. Head Tube Angle64.0°64.0°64.0°64.0°64.0°
H. Chainstay Length430mm430mm430mm430mm430mm
I. Wheelbase1153mm1185mm1217mm1248mm1280mm
J. Bottom Bracket Drop18mm18mm18mm18mm18mm
K. Estimated BB Height337mm337mm337mm337mm337mm
L. Stand Over Height665mm665mm673mm686mm698mm
M. Fork Offset37mm37mm37mm37mm37mm
