Transition Patrol Alloy MTB NX Complete Bike Raw

Season:2021

Brand:Transition

Code:TR.CB.21.PAT.AL.NXRaw

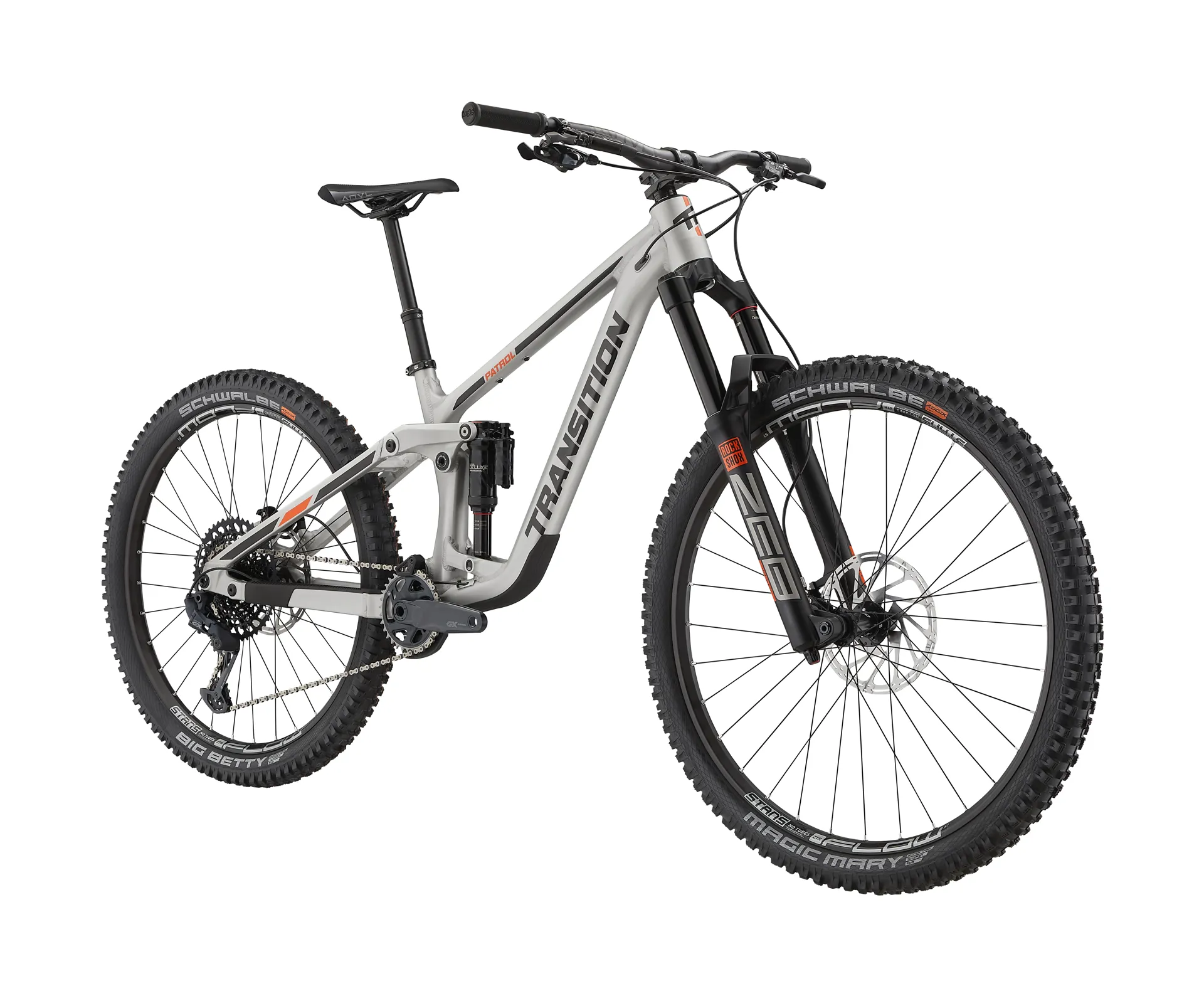

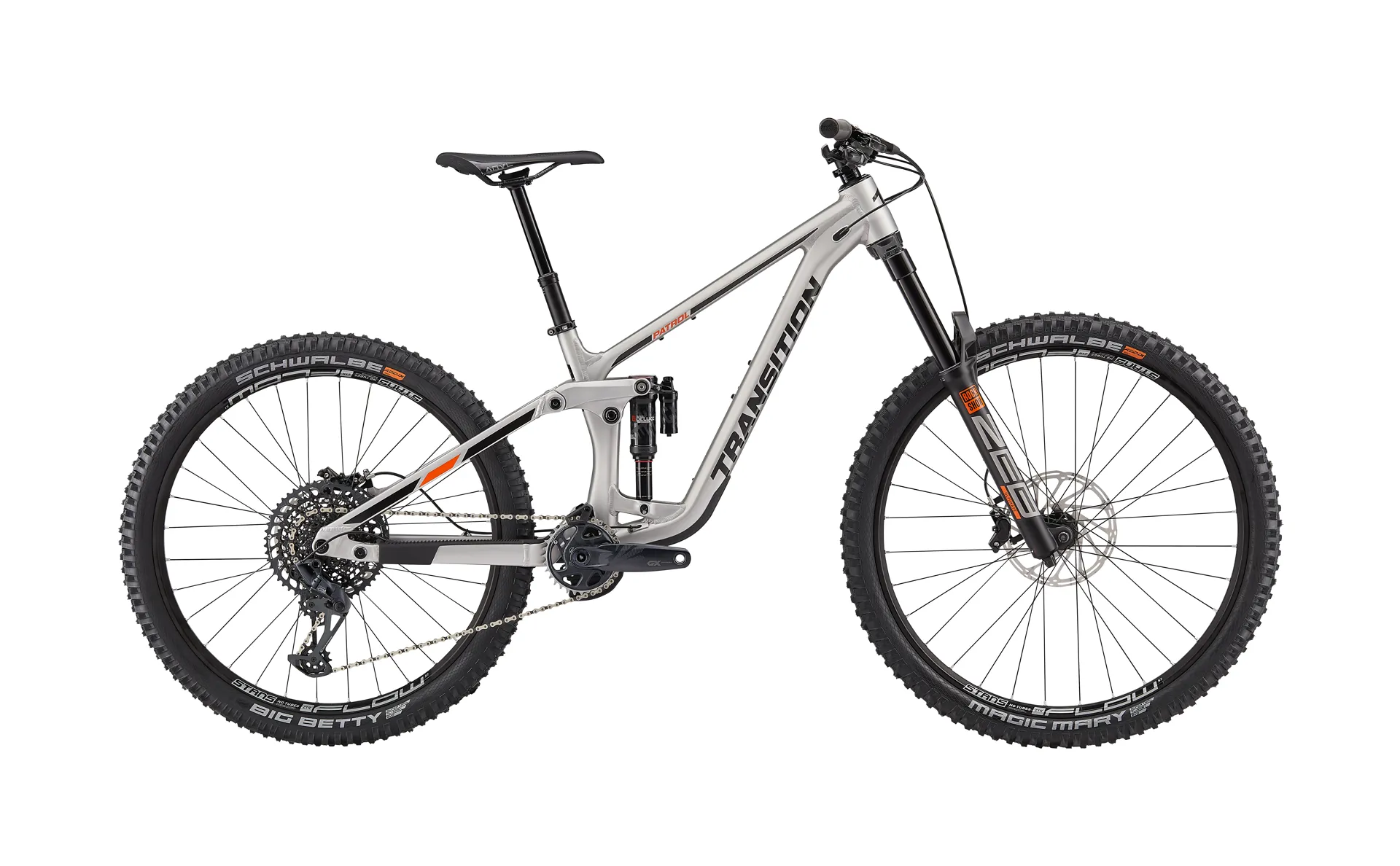

Transition Patrol Alloy MTB NX Complete Bike Raw

Image for colour illustration purposes, please see below for the list of components.

The pure bred party animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.

Being on of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front/27.5" rear wheels and revised suspension tune might just make you ride all day and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to part. From bike parts to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you're having.

Frame material
The Patrol alloy features a frame made from tough and dependable 6061 aluminium to strike the right balance of frame strength, durability and ride quality.

Frame Protection
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber protection at all critical areas. in addition to downtube and seatstay protection the ribbed chainstay protector features expanded coverage of the rear drop out pivot area.

Geo Adjust Chip
All frames are equipped with a geo adjust chip at the lower shock mount for high and low geometry settings,. Change the attitude of the bike with a simple flip of a chip.

Enduro MAX Bearings
We exclusively use Enduro MAX suspension specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

Tyre Clearance
Ample clearance for mud and tyres upto 2.6"

Specifications

TBA



Warranty Information

Lifetime Warranty

At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner as well as our stellar crash replacement program.

The Crash Replacement scheme offers 50% off rrp for the original owner. For secondhand owners we offer 40% off rrp.

Transition Warranty

Sizing Information

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Geo-diagram

High SettingSMLXL
Reach420mm455mm480mm510mm
Stack623mm623mm632mm641mm
Effective TT Length540mm575mm603mm636mm
Seat Tube Length360mm390mm430mm460mm
Effective ST Angle79.6°78.8°78.1°77.5°
Saddle Height For Effective ST Angle600mm660mm720mm780mm
Head Tube Length100mm100mm110mm120mm
Head Tube Angle63.5°63.5°63.5°63.5°
Chainstay Length434mm434mm440mm440mm
Wheelbase1,196mm1,231mm1,266mm1,301mm
Bottom Bracket Drop15mm15mm15mm15mm
Estimated BB Height340mm340mm340mm340mm
Stand Over Height675mm690mm705mm720mm
Fork Offset44mm44mm44mm44mm

Low SettingSMLXL
Reach415mm450mm475mm505mm
Stack628mm628mm637mm646mm
Effective TT Length543mm578mm606mm639mm
Seat Tube Length360mm390mm430mm460mm
Effective ST Angle79.1°78.3°77.6°77.0°
Saddle Height For Effective ST Angle600mm660mm720mm780mm
Head Tube Length100mm100mm110mm120mm
Head Tube Angle63.0°63.0°63.0°63.0°
Chainstay Length436mm436mm442mm442mm
Wheelbase1,198mm1,233mm1,268mm1,303mm
Bottom Bracket Drop22mm22mm22mm22mm
Estimated BB Height333mm333mm333mm333mm
Stand Over Height685mm700mm715mm730mm
Fork Offset44mm44mm44mm44mm
Professional Opinion

Frame Features

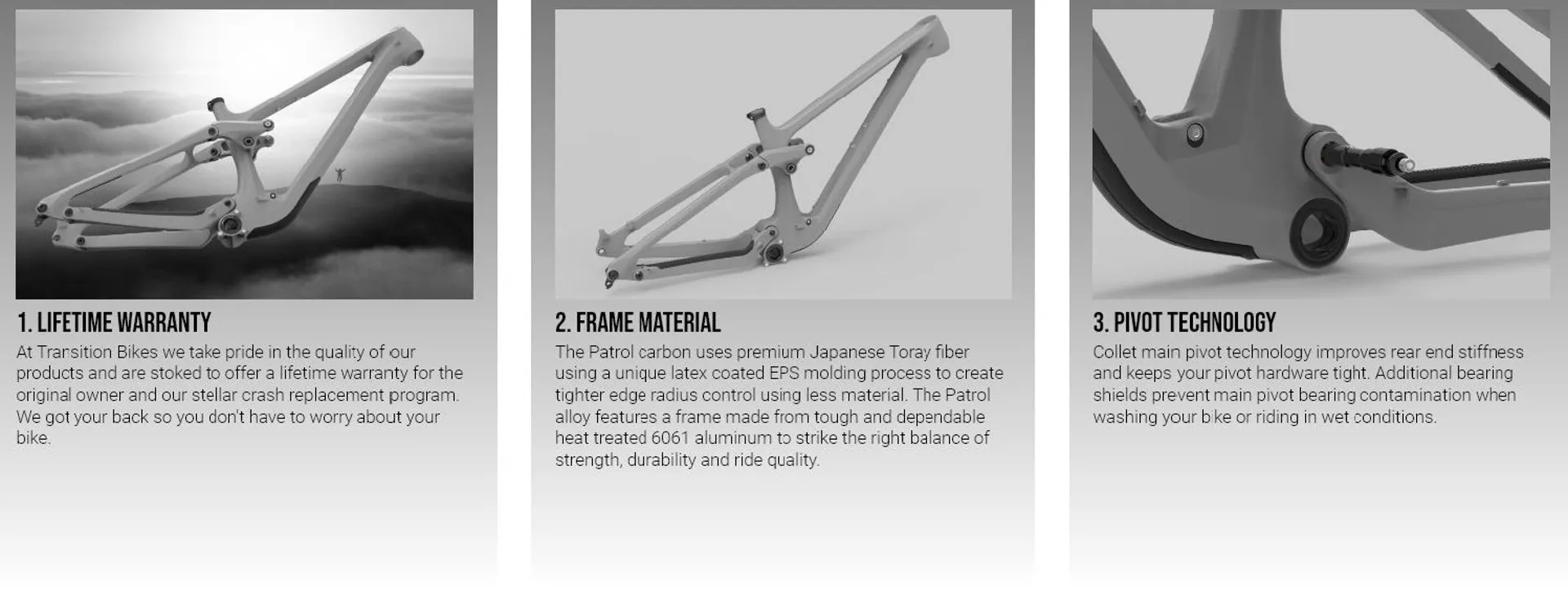

  • Lifetime Warranty
    At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back os you ddon't have to worry about your bike.

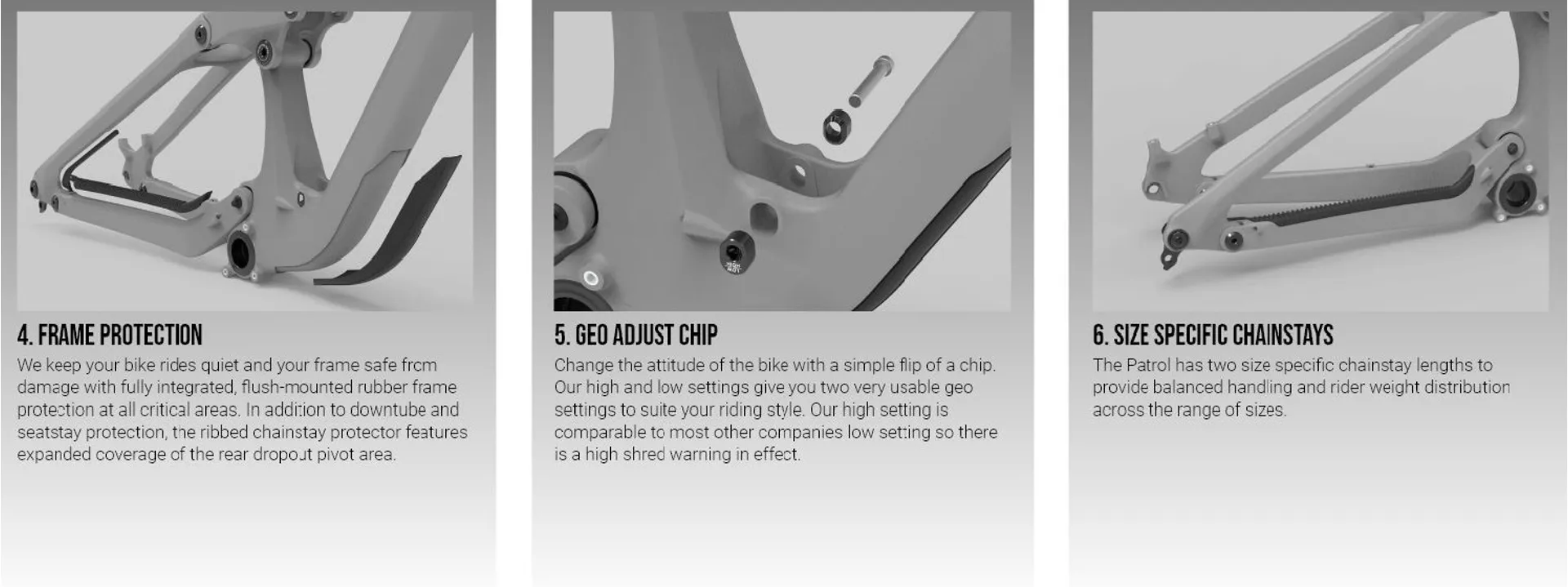

  • Geo Adjust Chip
    Change the attitude of the bike with a simple flip of a chip. Our high and low settings give your two very usable geo settings to suit your riding style. our high setting is compatible to most other companies low setting so there is a high shred warning in effect.
  • Size Specific Chainstays
    The Patrol has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
  • Pivot Technology
    collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
  • Frame Protection
    We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection in all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the chainstay yoke.

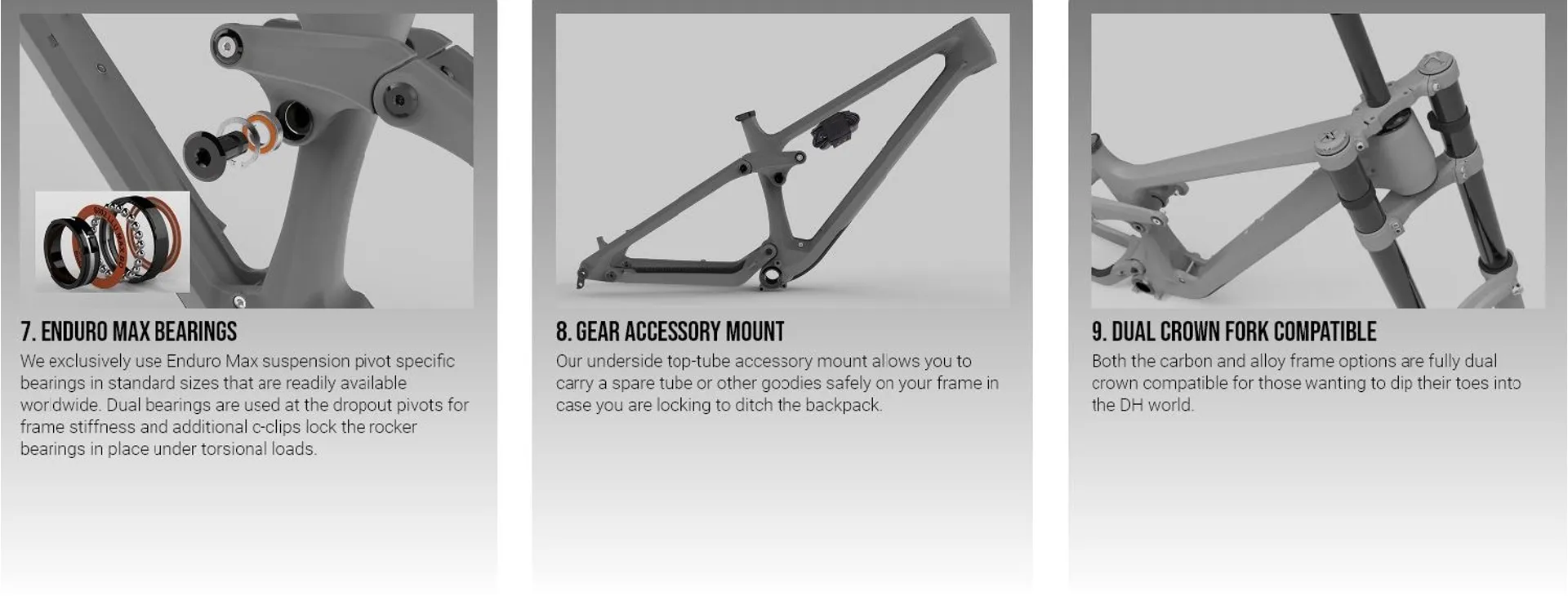

  • Badass Bearings
    We exclusively use EnduroMax suspension pivot specific bearings in standard sizes that are readily available worldwide. dual bearings are used at the dropout pivots for frame stiffness and additional c0clips lock the rocker bearings in place under torsional loads.
  • Gear Accessory Mount
    Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you're looking to ditch the backpack.
  • Dual Crown fork Compatible
    Patrol frames are fully dual crown compatible for those wanting to dip their toes in the DH world.

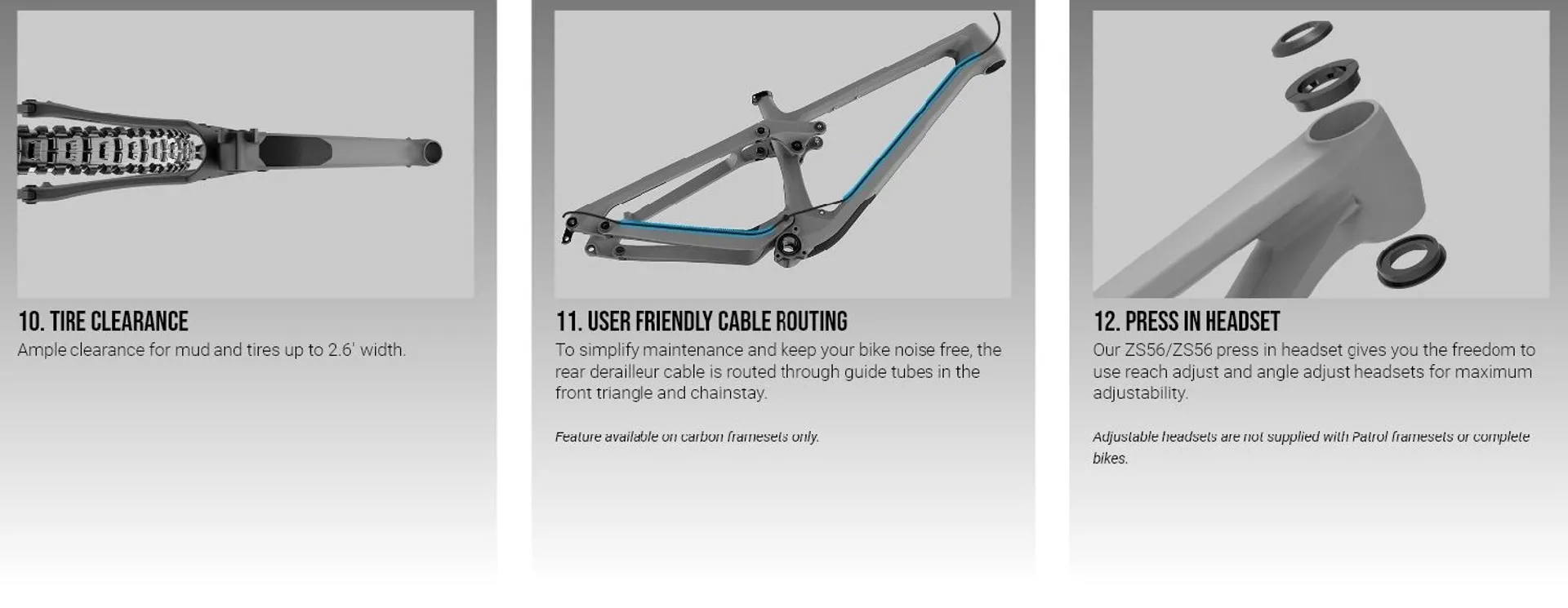

  • Tyre Clearance
    Ample clearance for mud and tyres up to 2.6" width.
  • Press-in headset
    our ZS56/ZS56 press-in headset gives you the freedom to use reach adjust and angle adjust headsets for maximum adjustability.

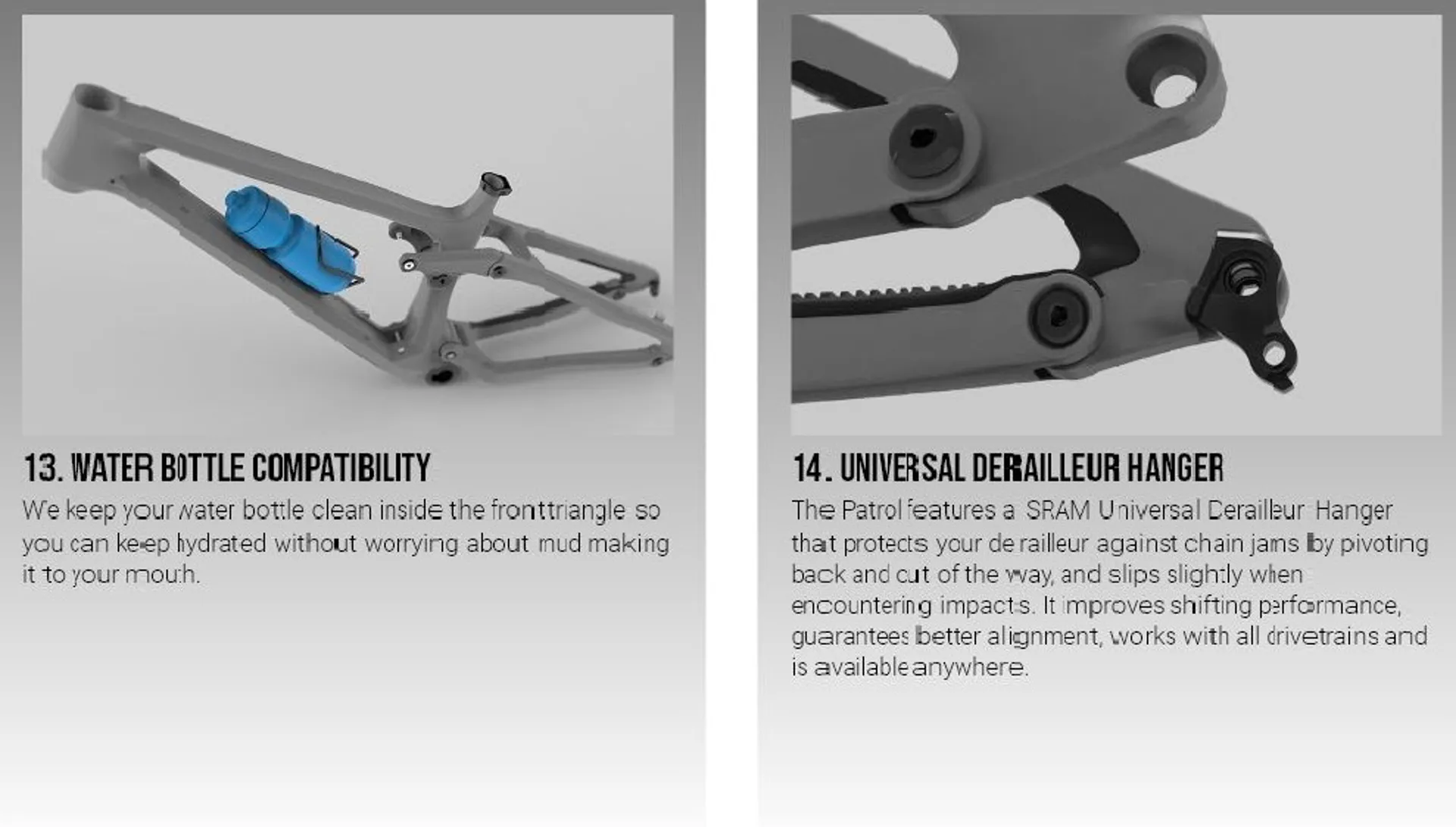

  • Water Bottle Compatibility
    We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.
  • Universal Derailleur Hanger
    The Patrol features a SRAM Universal Derailleur hanger that protects your derailleur against chain jams by pivoting back and out of the way and slips slightly when encountering impacts. It improves shifting performance, guarantees better alignment, works with all drivetrains and is available anywhere.

Giddyup Suspension Design

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 24% progression and the most current evolution of our GiddyUp suspension kinematic, the Patrol has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Patrol has 160mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer, 205mm x 65mm stroke shock to increase the rear wheel travel to 170mm if you are after a longer travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
