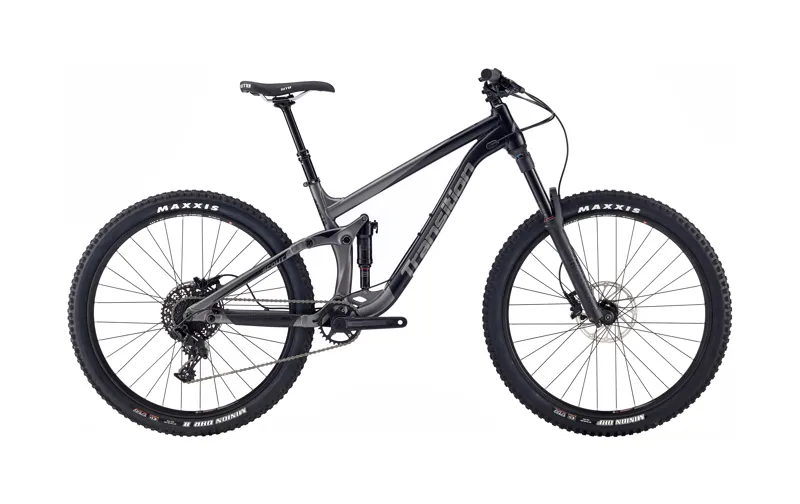

Aggressive, playful, and efficient. The Scout performs magic by not feeling like it has too much travel and never leaves you wanting more.
Amazing trail feel that loves to pedal but can turn into an absolute beast on descents whenever needed.
The Scout has everything you need in a top level trail bike including full water bottle storage, industry leading seat post insertion and piggy back metric shock for long descents.
As well as the new Speed Balanced Geometry that will help you take your riding to another level.
https://www.transitionbikes.com/Sizing.cfm
FORK AXLE TO CROWN 542mm
FORK OFFSET 37mm
REAR SHOCK SIZE 210mm x 55mm
REAR SHOCK HARDWARE 30mm x 8mm Top / 25mm x 8mm Bottom
HEADSET 44mm Zero Stack (Top) / 56mm Zero Stack (Bottom)
BOTTOM BRACKET 73mm BSA Threaded
REAR BRAKE 180mm Post Mount
REAR AXLE Syntace X12 148
FRONT DERAILLEUR No Support
ISCG TABS ISCG05
SEATPOST DIAMETER 31.6mm
MAX SEATPOST INSERTION XS 175mm, Small 200mm, Medium 230mm, Large 270mm, XL 300mm
SEAT CLAMP 34.9mm
MAXIMUM CHAINRING 34t
MAXIMUM TIRE 27.5 x 2.8
SAG SETUP 17-19mm (32-35%)
FRAME WEIGHT (Medium with Shock/Axle/Hardware) 8.99 lbs. / 4.08 Kg
