Transition Spur All Country Carbon MTB Frame Set Black Powder

Season:2020

Brand:Transition

Code:TR.FS.20.SPURBLKPowder

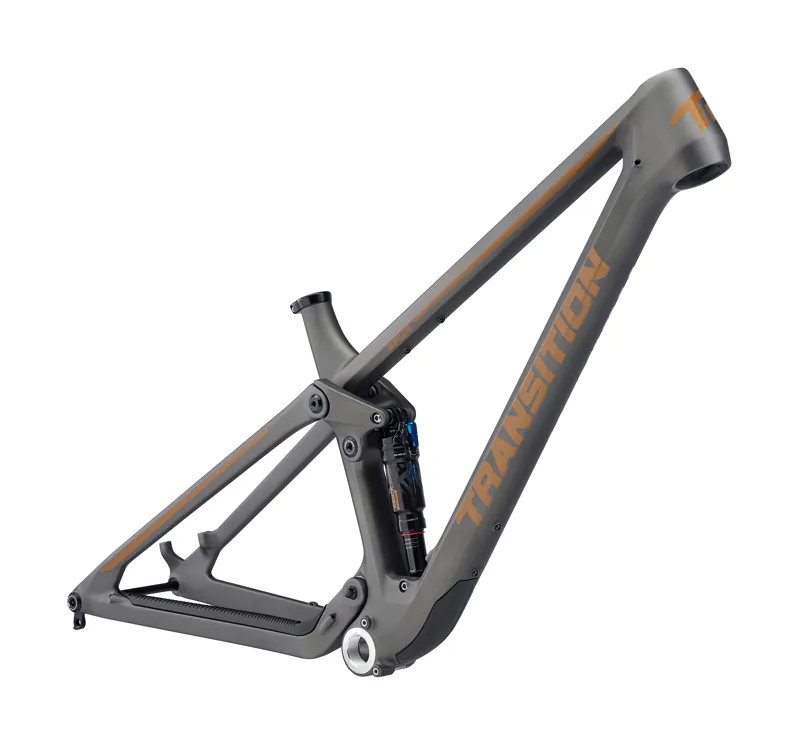

Transition Spur All Country Carbon MTB Frame Set Black Powder

Transition Spur All Country Carbon MTB Frame Set Black Powder. 120mm travel `All Country` frameset designed to effortlessly explore, seek and pursue the mountain in ways you never imagined.

Effortlessly explore, seek and pursue the mountain in ways you never imagined.

The Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti-gravity feel and laser-pointer precision the bike begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedaling. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster.

Features

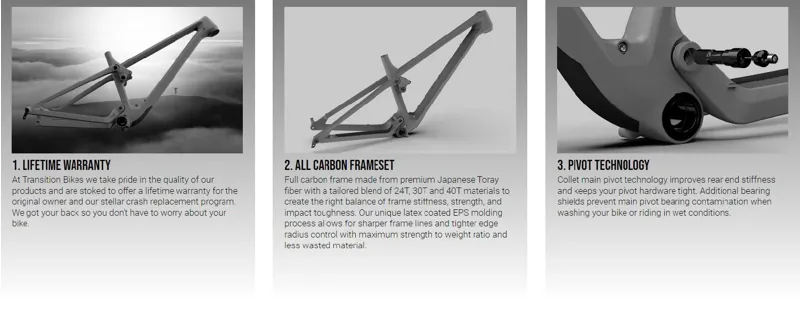

Frame MaterialToray 24T, 30T and 40T Uni Directional (UD) Japanese Carbon Fiber FT, RT and Rocker
Wheel Size29 F&R with clearance for 2.4" tires
Fork A-C (Including HS)533mm (120mm travel SID w/ headset)
Fork Offset44mm
Rear Shock Size (Standard)190mm X 45mm stroke for 120mm travel
Rear Shock Size (Optional)190mm X 40mm stroke for 100mm travel
Rear Shock Hardware25mm x 8mm Bottom, 30mm x 8mm Top
Headset Type44mm / 56mm Zero Stack Press In Cups
Bottom Bracket73mm English Threaded
Rear Brake160mm Post Mount (Max clearance 203mm, max recommended 180mm)

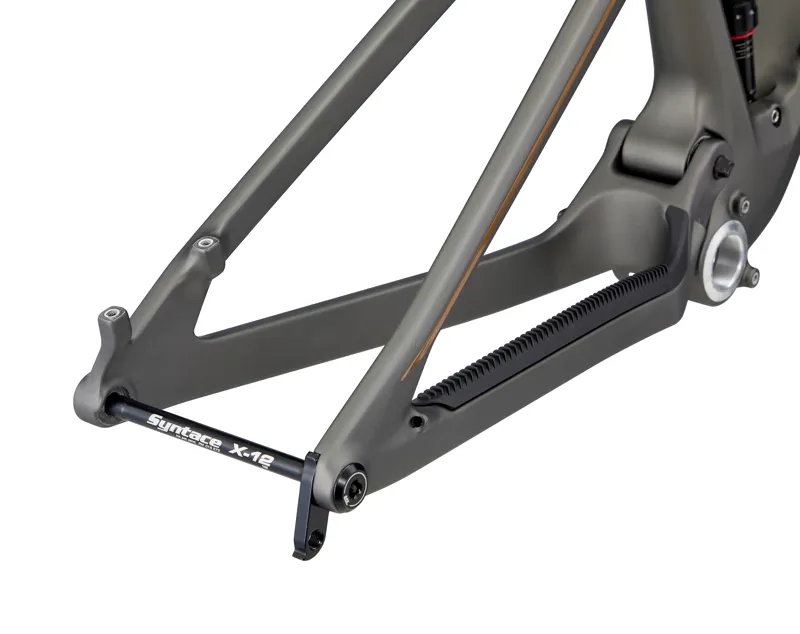

Rear Axle12x148mm Syntace (Boost Spacing)
Derailleur HangerTransition TSFA-HG-B
ISCG TabsISCG 05 (2 Positions Only, 3mm offset outward from BB face to accommodate boost chainline directly)
Seatpost Size31.6mm (Bolt on 37.0mm Clamp Included With Frames/Bikes)
Max Chainring Size36t (Based on 52mm Boost Chainline)
Recommended Sag120mm Travel (45mm Stroke Shock) = 12-15mm (27-33%)

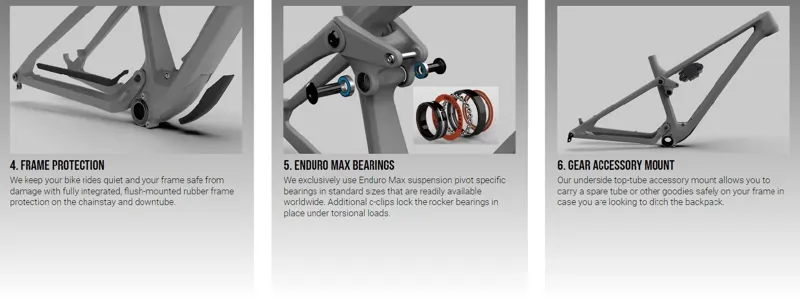

Bearing Sizes2x 6903, 4x 6901

Sizing Information

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Geo-diagram


GeometrySMLXL
Reach425455480510
Stack600610619632
Effective TT Length569602630664
Seat Tube Length380410460500
Effective ST Angle76.776.275.975.6
Reference Seat Height600660720780
Actual ST Angle72.072.072.072.0
ST Offset at BB Height51515151
Head Tube Length100110120135
Head Tube Angle66.066.066.066.0
Chainstay Length435435435435
Wheelbase1156119012191255
Bottom Bracket Drop40404040
Estimated BB Height335335335335
Stand Over Height662667670677
Seatpost Insertion250280330330
Professional Opinion

GiddyUp Suspension

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 30% of progression and a consistent linear rate of change, the Spur has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and acceleration but doesn't get in the way of the suspension working when it's needed.

The GiddyUp suspension, featuring a one-piece flex stay rear triangle, is tuned to work correctly with inline style rear shocks and designed to provide a balanced feel with 120mm travel forks. Riders are able to add or remove volume spacers in the rear shock to suit their individual riding style and there is plenty of bottom out control for when things get rowdy. The Spur has 120mm of rear wheel travel when used with the supplied 190mm x 45mm stroke shock. It is also possible to install a shorter, 190mm x 40mm stroke shock, to reduce the rear wheel travel to 100mm if you are after a shorter travel experience.

A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from firm and snappy, to more supple and active. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
