Colnago V3 Disc Complete Road Bike Shimano Ultegra Di2 12 spd Black Red MKBR. Arace ready road bike which can be ridden on sportive events with great comfort. Equiped with Shimano Ultegra 12spd Di2 groupset
Colnago V3 Disc Complete Road Bike Shimano Ultegra Di2 12 spd Black Red MKBR. Arace ready road bike which can be ridden on sportive events with great comfort. Equiped with Shimano Ultegra 12spd Di2 groupset
Colnago

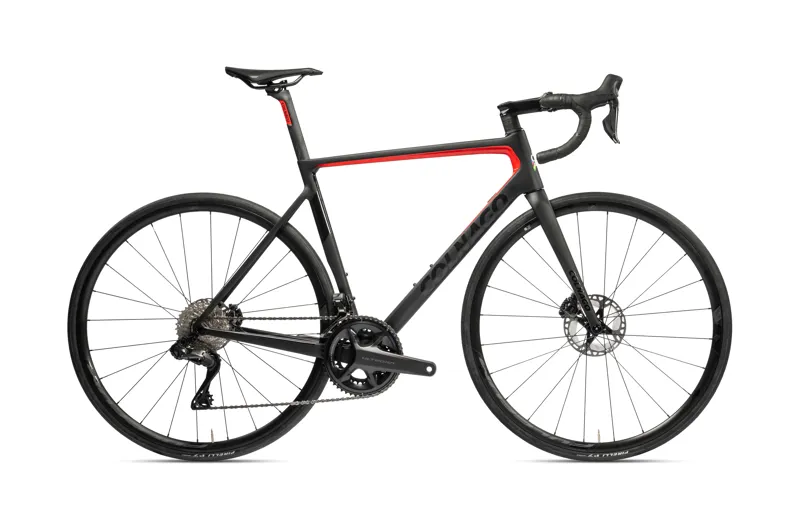

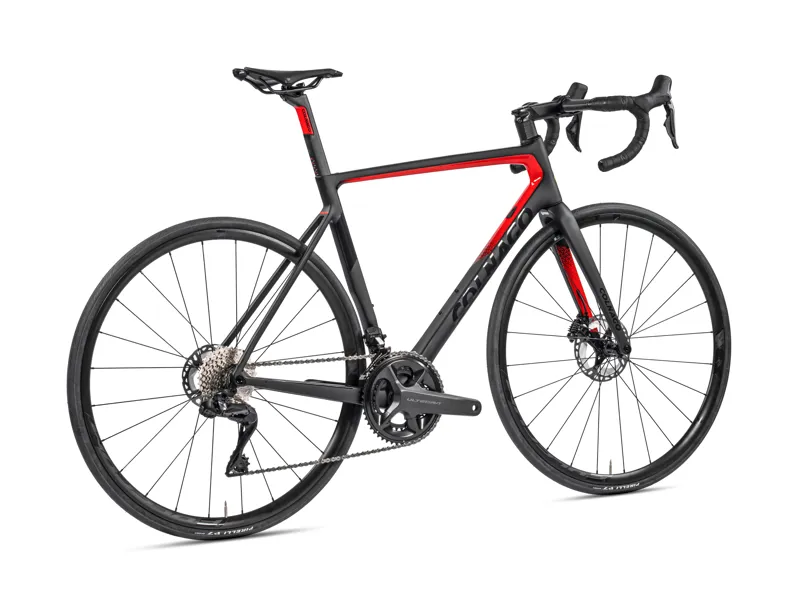

Colnago V3 Disc 2023 Complete Road Bike Shimano Ultegra Di2 12 spd Black Red MKBR

£4,479.20 £5,599.00 20% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We hope you are extremely happy with your Windwave purchases. However, if for any reason you are not completely satisfied then you have 30 days from the date on which the goods were received to return any item for an exchange or a full refund.

For any Returns or Warranty enquiries, you will need authorisation from our Returns Manager to be considered prior to shipping. Please contact hollie@windwave.co.uk for details. Hollie will arrange a return and an email containing a returns form will be sent to you. Please complete the form, attach a copy of your proof of purchase, and place them in with your product.

We recommend that you take your package to a post office and send via recorded delivery (or similar), as Windwave cannot accept responsibility for any loss or damage that may occur during transit of your parcel to our offices. We advise that you email us the tracking number so it can be added to your claim for reference.

It normally takes us about 10 working days to process a return once the returned items have been received into our warehouse. Upon inspection of the returned product, Windwave will issue a refund or process an exchange. A return confirmation email will be sent to you once your return has been processed.

In the unlikely event that an item is returned to us in an unsuitable condition, Windwave reserves the right not to refund the item and arrange to send the item back to you at your expense.

Please note that we can only offer exchanges for a like-for-like product in a different colour or size. Please also bear in mind that we cannot guarantee that a replacement product will be in stock when your return is processed. We therefore we recommend placing a new order and returning the original product for a refund.

Please note that returned products cannot be dropped back at our warehouse or offices. All returns must be sent via post.

For further information please see our Terms and Conditions.

Colnago V3 Disc 2023 Complete Road Bike Shimano Ultegra Di2 12 spd Black Red MKBR

Season:2023

Brand:Colnago

Code:rbkM:edoC21.2ID.CSID.3V.2

Colnago V3 Disc 2023 Complete Road Bike Shimano Ultegra Di2 12 spd Black Red MKBR

A race ready road bike which can be ridden on sportive events with great comfort.

When we developed the V3 we thought of all those cyclists who want to get the most out of their investment. Quality carbon and fittings designed to offer an excellent level of performance and contain costs makes the V3 a perfectly balanced bike from every point of view.

The Design
It blends technical solutions that aim at lightness with aerodynamic details. The line is clean and essential and it can be fitted with tyres up to 28mm. V3 is available in eight sizes and fitted with disc brakes to meet the demands of modern bike riding.

Geometry
What is the point of making a light bike if you can't ride it effectively? For this reason the geometry has been completely redesigned. The main features are the shorter head tube, the longer fork and a greater balance across all eight size options. The height of the bottom bracket has also been changed, it is lower, to improve the ride-ability of the bicycle with increased tyre widths (28c).

The Fork
Developed for maximum compatibility with disc brake systems. The new shape with concave sheaths in the upper part (front view) optimized the wheel passage allowing the use of wide tyres (28c), comfort and lateral rigidity.

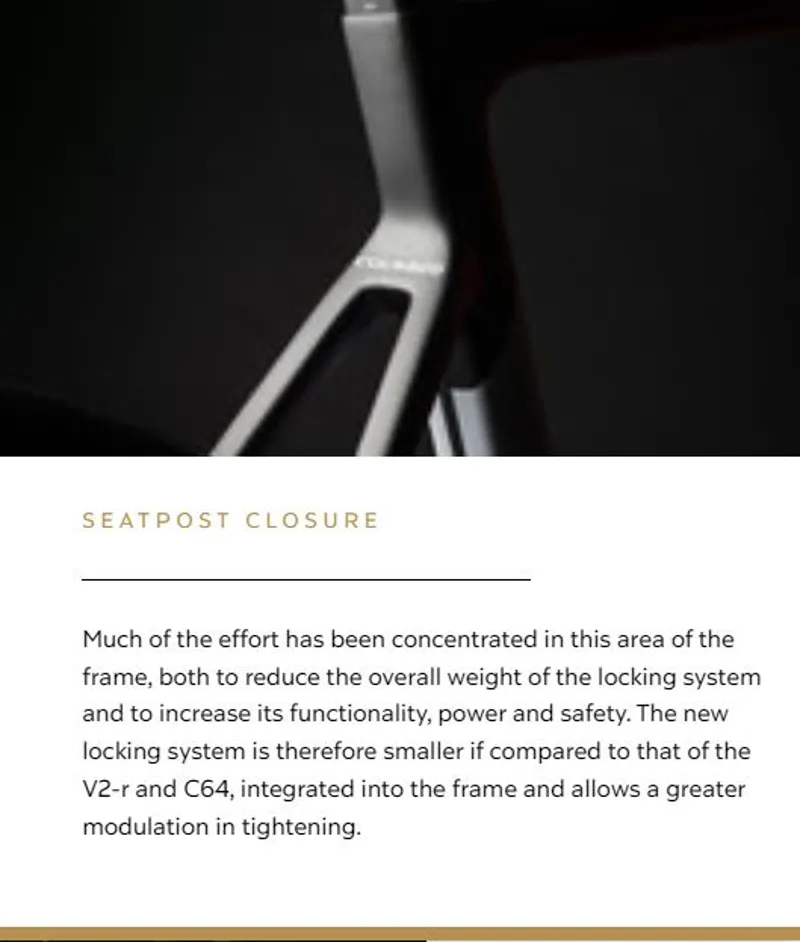

Seatpost Closure
Much of the effort has been concentrated in this area of the frame, both to reduce the overall weight of the licking system and to increase its functionality, power and safety. The new locking system is therefore smaller if compared to that of the V2-R and the C64, integrated into the frame and allows a greater modulation in tightening.

Complete bike with Ultegra Di2 groupset. Components on image may vary.

Check stock Availability within the Colnago UK Dealer Network –Click Here

Technical Information
Technical Specifications
FRAMECOLNAGOV3 inner cable routing
FORKCOLNAGOV3 inner cable routing
SEAT POSTCOLNAGOV3
F/HUB THRU AXLECOLNAGO121MM
R/HUB THRU AXLECOLNAGO163MM
F/TYREPIRELLIPIRELLI P7 700X28
R/TYREPIRELLIPIRELLI P7 700X28
HEADSETACROS73.50.201+73.52.202 headset with steel bearings
SPACERPRIME AERO5mm
SPACERPRIME AERO3mm
HANDLEBARCOLNAGOCarbon R41
STEMDEDAELEMENTISUPERBOX
GRIP(TAPE)VELOblack or white color with embossed colnago
SADDLEPROLOGODIMENSION T4.0
B.B. PARTSSHIMANOSM-BB72-41B, PRESS FIT TYPE FOR ROAD
CHAINSHIMANOCN-M8100 114LINKS FOR HG 12-SPEED
CRANKSETSHIMANOFC-R8100 ULTEGRA FOR REAR 12-SPEED, 52-36T
F/BRAKE SETSHIMANOST-R8170(L), BR-R8170(F), FOR 160MM ROTOR
R/BRAKE SETSHIMANOST-R8170(R), BR-R8170(R), FOR 140MM ROTOR
F/ROTORSHIMANORT-MT800, S 160MM
R/ROTORSHIMANORT-MT800, SS 140MM
F/DERAILLEURSHIMANOFRONT DERAILLEUR, FD-R8150, ULTEGRA, FOR REAR 12-SPEED
R/DERAILLEURSHIMANORD-R8150, ULTEGRA, 12-SPEED
FREEWHEELSHIMANOCS-R8100, 12-SPEED, 11-12-13-14-15-16-17-19-21-24-27-30T
BATTERYSHIMANOBT-DN300, BUILT-IN TYPE
WHEELSETFULCRUMRACING 600 DB
Sizing Information

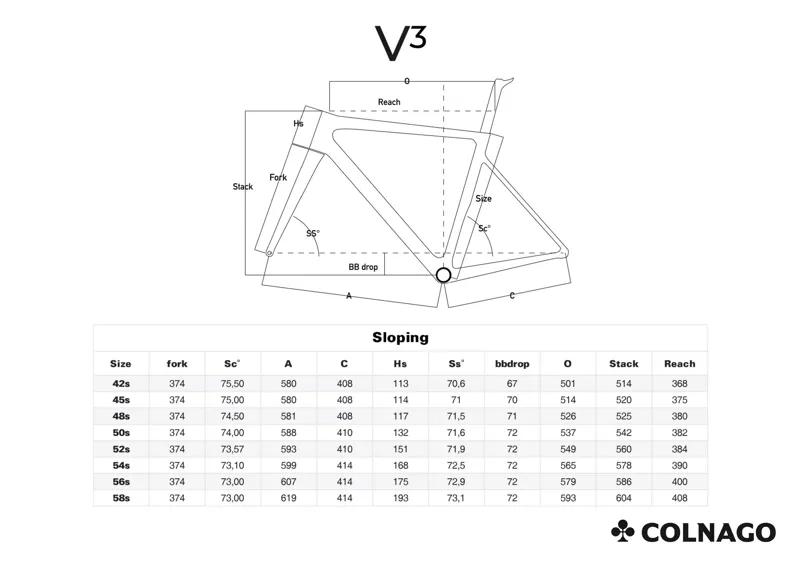

Colnago V3 geometry

Size42S45S48S50S52S54S56S58S
Reach368375380382384390400408
Stack514520525542560578586604
Top Tube (effective)501514526537549565579593
Head Angle70.671.0071.571.671.972.572.973.1
Seat Angle75.5075.0074.5074.0073.5773.1073.0073.0
Head Tube113114117132151168175193
Chainstay408408408410410414414414
Front Centre580580581588593599607619
BB Drop6770717272727272
Fork Length374374374374374374374374
