Transition TransAm Steel Hardtail MTB SRAM NX Complete Bike Chrome. Trail-shredding 29" wheel hardtail MTB. 150mm travel front fork

Transition

Transition TransAm Steel Hardtail MTB SRAM NX Complete Bike Chrome

£2,899.00

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We hope you are extremely happy with your Windwave purchases. However, if for any reason you are not completely satisfied then you have 30 days from the date on which the goods were received to return any item for an exchange or a full refund.

For any Returns or Warranty enquiries, you will need authorisation from our Returns Manager to be considered prior to shipping. Please contact hollie@windwave.co.uk for details. Hollie will arrange a return and an email containing a returns form will be sent to you. Please complete the form, attach a copy of your proof of purchase, and place them in with your product.

We recommend that you take your package to a post office and send via recorded delivery (or similar), as Windwave cannot accept responsibility for any loss or damage that may occur during transit of your parcel to our offices. We advise that you email us the tracking number so it can be added to your claim for reference.

It normally takes us about 10 working days to process a return once the returned items have been received into our warehouse. Upon inspection of the returned product, Windwave will issue a refund or process an exchange. A return confirmation email will be sent to you once your return has been processed.

In the unlikely event that an item is returned to us in an unsuitable condition, Windwave reserves the right not to refund the item and arrange to send the item back to you at your expense.

Please note that we can only offer exchanges for a like-for-like product in a different colour or size. Please also bear in mind that we cannot guarantee that a replacement product will be in stock when your return is processed. We therefore we recommend placing a new order and returning the original product for a refund.

Please note that returned products cannot be dropped back at our warehouse or offices. All returns must be sent via post.

For further information please see our Terms and Conditions.

Transition TransAm Steel Hardtail MTB SRAM NX Complete Bike Chrome

Season:2024

Brand:Transition

Code:TR.CB.24.TRANSAMCLR

Transition TransAm Steel Hardtail MTB SRAM NX Complete Bike Chrome

The Passionate Pioneer

Transition TransAm Steel Hardtail MTB SRAM NX Complete Bike Chrome. Trail-shredding 29" wheel hardtail MTB. 150mm travel front fork. It will steel your heart.

The classic TransAM returns! After a seven-year hiatus, the reliable trail-shredding hardtail is back in the line-up for a limited time. Now with modern geometry, dual 29-inch wheels, a capable build spec or frameset options, this will be one to hang on to and pass down for many generations. The updated geo encourages hard-charging but rewards thoughtful line choice. It orchestrates a fast-paced ballet through the landscape of your choosing. The new TransAM is ready for the core rider looking to get back to their roots.

Simple Is Fun

For the rider who loves refined simplicity with the feeling of the wind in their face as they rip beautiful ribbons of terra-firma in both directions, we give you the TransAM. The TransAM brings a feeling of nostalgia and reminds its rider of that first taste of freedom when they were young.

For those that watch The Wizard of Oz while listening to the dark side of the moon. For the Off-Road Cyclist. For the person who doesn't always have a plan but knows that whatever lies ahead will be a most excellent adventure. The TransAM pays homage to the free spirits of yesteryear who found rolling through the mountains on two wheels to be the best way to experience life.

Less Is More

Tech keeps getting more complicated, the list of features gets longer, and the number of batteries keeps increasing. While we too are a bunch of bike nerds, excited about the latest and greatest, at our core we are mountain bikers who simply care about good dirt and good company. The new TransAM has no batteries, no motor, no apps, just a Chromoly frame that'll last a lifetime. In contrast to the times, we wanted to resurrect a bike that was clean and simple. With just enough updates and features like adjustable sliding dropouts, a UDH, and options for different wheel sizes, you can customize your bike to fit your style. Get the complete or the frame, either way, get out there and leave the fuss behind.

Technical Information

Specifications
Frame	TransAM Chromoly Steel
Wheel Size	29"
Fork	Marzocchi Z2 (150mm)
Headset	FSA No.10/7B/44
Stem	RaceFace Aeffect R (40mm)
Handlebar	RaceFace Chester 35 SM/MD(780x20) LG/XL(780x35)
Grips	ODI Elite Flow Lock-On
Saddle	SDG Bel Air 3
Seatpost	OneUp Dropper Post SM(150mm) MD(180mm) LG/XL(210mm)

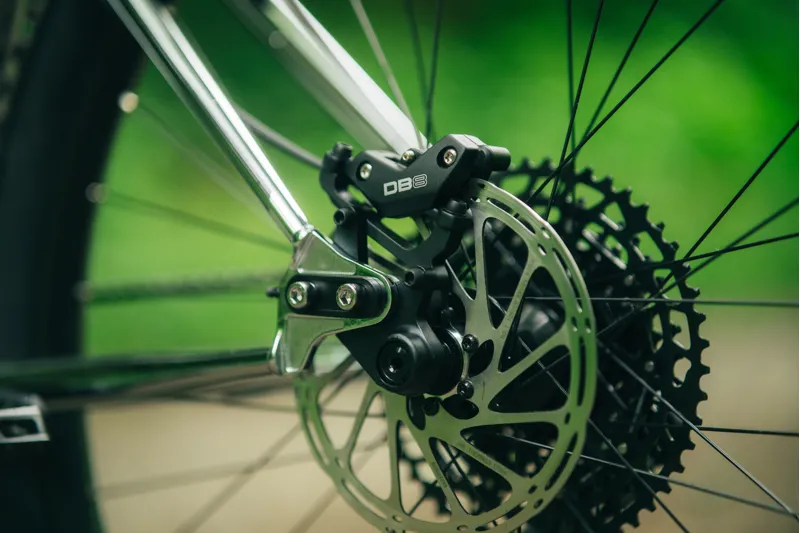

Brakes	SRAM DB8
Rotors	SRAM Centerline (200/180mm)
Shifter	SRAM NX Eagle MMX
Derailleur	SRAM NX Eagle
Cassette	SRAM PG 1230 (11-50t)
Chain	SRAM NX Eagle
Crank	SRAM Descendent 6k DUB (170mm x 30t)
Rims	WTB ST i30
Spokes	Pillar Double Butted
Hubs	Novatech D791SB/D902SB
Tire/Front	Maxxis Assegai 3C EXO+ (2.5)
Tire/Rear	Maxxis Minion DHRII 3C EXO+ (2.4)
Included	Tubeless Valves & Sealant
Weight	33.0 lbs / 14.97 kg (Size MD)

Sizing Information

TransAm 2024 Geometry

	SM	MD	LG	XL
A.REACH	430 mm	460 mm	485 mm	510 mm
B.STACK	641 mm	641 mm	646 mm	655 mm
C.EFFECTIVE TT LENGTH	584 mm	614 mm	640 mm	667 mm
D.SEAT TUBE LENGTH	370 mm	400 mm	430 mm	460 mm
E.EFFECTIVE ST ANGLE	76.5°	76.5°	76.5°	76.5°
F.HEAD TUBE LENGTH	105 mm	105 mm	110 mm	120 mm
G.HEAD TUBE ANGLE	64.0°	64.0°	64.0°	64.0°
H.CHAINSTAY LENGTH	425-437 mm	425-437 mm	425-437 mm	425-437 mm
I.WHEELBASE (Based on 425mm Chainstay Setting)	1187 mm	1219 mm	1246 mm	1276 mm
J.BOTTOM BRACKET DROP	50 mm	50 mm	50 mm	50 mm
K.ESTIMATED BB HEIGHT	320 mm	320 mm	320 mm	320 mm
L.STAND OVER HEIGHT	662 mm	667 mm	670 mm	677 mm
M.FORK OFFSET	44 mm	44 mm	44 mm	44 mm
N.SEAT POST INSERTION	250 mm	280 mm	320 mm	350 mm

Professional Opinion

Frame Specifications
Front Travel:	150mm
Wheel Size:	29" F&R
Sizes:	SM, MD, LG, XL
Colors:	Chrome
Frame Material:	Chromoly Steel, 4130
Fork Axle To Crown:	574mm (Excludes Headset)
Fork Offset:	44mm
Headset (Top):	ZS44
Headset (Bottom):	EC44
Bb Shell:	73mm BSA Thread
Chainline:	52-55mm
Rear Brake Mount:	160mm IS, Max Rotor Size 223mm
Derailleur Hanger:	SRAM UDH (T-Type Direct Mount)
Rear Axle:	Transition Axle For UDH, 12mm x 148mm Spacing
Iscg Tabs:	ISCG05
Seatpost Diameter:	30.9mm
Seat Clamp:	34.9mm
Max Seatpost Insertion:	Small 250mm \| Medium 280mm \| Large 320mm \| X-Large 350mm
Max Chainring Size:	34T Single Ring
Max Tire Size:	29 x 2.5
