Transition Spire Alloy MTB NX Complete Bike Hint Of Blue.Take on the biggest terrain without the penalty. 170mm long travel DH bike capability with mid-travel efficiency, it’s almost two bikes in one
Transition Spire Alloy MTB NX Complete Bike Hint Of Blue.Take on the biggest terrain without the penalty. 170mm long travel DH bike capability with mid-travel efficiency, it’s almost two bikes in one
Transition

Transition Spire Alloy MTB NX Complete Bike Hint of Blue

£3,439.20 £4,299.00 20% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

We hope you are extremely happy with your Windwave purchases. However, if for any reason you are not completely satisfied then you have 30 days from the date on which the goods were received to return any item for an exchange or a full refund.

For any Returns or Warranty enquiries, you will need authorisation from our Returns Manager to be considered prior to shipping. Please contact hollie@windwave.co.uk for details. Hollie will arrange a return and an email containing a returns form will be sent to you. Please complete the form, attach a copy of your proof of purchase, and place them in with your product.

We recommend that you take your package to a post office and send via recorded delivery (or similar), as Windwave cannot accept responsibility for any loss or damage that may occur during transit of your parcel to our offices. We advise that you email us the tracking number so it can be added to your claim for reference.

It normally takes us about 10 working days to process a return once the returned items have been received into our warehouse. Upon inspection of the returned product, Windwave will issue a refund or process an exchange. A return confirmation email will be sent to you once your return has been processed.

In the unlikely event that an item is returned to us in an unsuitable condition, Windwave reserves the right not to refund the item and arrange to send the item back to you at your expense.

Please note that we can only offer exchanges for a like-for-like product in a different colour or size. Please also bear in mind that we cannot guarantee that a replacement product will be in stock when your return is processed. We therefore we recommend placing a new order and returning the original product for a refund.

Please note that returned products cannot be dropped back at our warehouse or offices. All returns must be sent via post.

For further information please see our Terms and Conditions.

Under the Consumer Rights Act of 2015 you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described, and get a full refund.

But this right is limited to 30 days from the date you took ownership of the goods (this could be the date of purchase or the date the goods were delivered to you - whichever is later).

After the initial 30 days, you can't demand a full refund in the first instance, but you still have the right to a repair or replacement.

Refunds (if applicable)

Once your returned item is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 calendar days. If you paid for standard delivery of the goods, the cost of standard delivery will also be refunded.

There are certain situations where only partial refunds are granted (if applicable):

  • Books or other paper products with obvious signs of use;
  • Any item not in its original condition, which is damaged or missing parts for reasons not due to our error; and
  • Any item that is returned more than 30 days after delivery.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again.

Then contact your credit card company, it may take some time before your refund is officially posted.

Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact Hollie at hollie@windwave.co.uk.

Sale items

We do not offer refunds for sale items, unless they are faulty.

Exchange (if applicable)

We only replace items if they are defective or damaged. If you need to exchange an item for the same item, please send Hollie an email at hollie@windwave.co.uk and post your item to:

Returns Dept.
Solent UK Ltd TA Windwave
Units D2-D3 Heritage Business Park
Heritage Way
Gosport
Hampshire
PO12 3SA

Shpping

To return your product, please mail your product to:

Returns Dept.
Solent UK Ltd TA Windwave
Units D2-D3 Heritage Business Park
Heritage Way
Gosport
Hampshire
PO12 3SA

Include your details and reason for returning.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. Depending on where you live, the time it may take for your exchanged product to reach you, may vary. If you are shipping an item over £50, you should consider using a trackable shipping service or purchasing shipping insurance as we cannot guarantee that we will receive your returned item.

Right to cancel

In addition to our Returns Policy, under the Consumer Contracts Regulations of 2013, you have the right to cancel your order up to 14 days from the day you receive your goods if you are an online, mail or telephone order customer. You then have a further 14 days from the date you notify the retailer of your cancellation to return the goods. The refund will include any standard delivery charges paid. You will be responsible for the cost of returning a cancelled order to us.

We will refund to you the price paid for the items and (unless you did not pay for delivery) the delivery charges that you paid up to a maximum amount of the cost of our standard delivery option. You will be refunded to your original method of payment within 14 calendar days of our receipt of the cancelled items or, if earlier, within 14 days from the day we receive proof of return from you. If we do not receive the cancelled items back, we may arrange to collect them from you at your cost.

To exercise your right to cancel please contact Hollie at hollie@windwave.co.uk.

Transition Spire Alloy MTB NX Complete Bike Hint of Blue

Season:2023

Brand:Transition

Code:ULBfOtniHXN.YLA.RIPS.32.B

Transition Spire Alloy MTB NX Complete Bike Hint Of Blue

image for colour illustration purposes, please see below for the list of components.

Take on the biggest terrain without the penalty, long travel doesn’t have to mean single purpose. The Spire blends DH bike capability with mid-travel efficiency in such a way it’s almost two bikes in one. A delicately tuned pedalling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favourite challenging descent, then cruise on over to your local flow trail and you’ll be rewarded on both ends of the spectrum. Don’t be fooled though, while it's no one-trick pony the Spire lives to push your limits.

Get in-Spired.
Spire complete bikes come equipped with suspension from Fox, RockShox or Marzocchi to take the biggest of hits. Powerful four piston brakes with big rotors front and rear help keep you in control. Schwalbe Magic Mary and Big Betty Super Trail tires offer you great cornering traction and braking performance in a variety of conditions. All build levels and sizes include 165mm cranks, a OneUp dropper post and a OneUp bash guide to ensure nothing holds you back

Awe-inspiring Speed Ballance Geometary
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds

GiddyUp Suspension Design
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

Please note:Delivery estimate is 4-5 working days from order.

Warranty Information

Lifetime Warranty

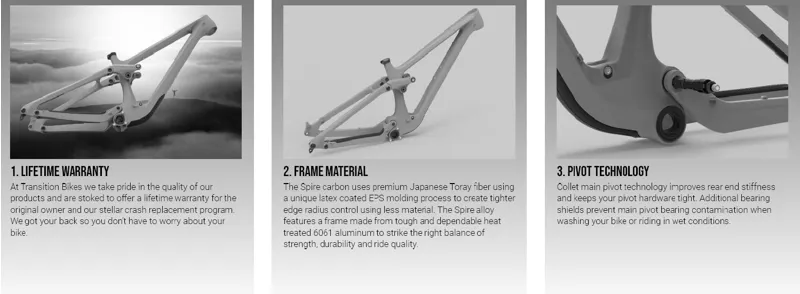

At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner as well as our stellar crash replacement program.

The Crash Replacement scheme offers 50% off rrp for the original owner. For secondhand owners we offer 40% off rrp.

Transition Warranty

Technical Information
Specifications
FrameSpire Alloy 170mm
Wheel Size29"
Rear ShockFox Float X Performance
(205x65mm)
ForkMarzocchi Bomber Z1 Air
(170mm)
HeadsetFSA NO.55R/57
StemRaceFace Aeffect R (40mm)
HandlebarRaceFace Chester 35
SM (780x20)
MD/LG/XL/XXL(780x35)
GripsODI Elite Flow
SaddleSDG Bel Air 3
SeatpostOneUp Dropper Post
BrakesSRAM Code R
RotorsSRAM Centerline (220mm/200mm)
ShifterSRAM NX Eagle MMX
DerailleurSRAM NX Eagle
CassetteSRAM PG 1230 (11-50t)
ChainSRAM NX Eagle
CrankSRAM Descendent 6K DUB
(30T/165mm)
ChainguideOneUp Bash Guide
RimsWTB ST i30
SpokesPillar Double Butted
HubsNovatec D791SB-B15/D902SB-B12
Tyre/FrontSchwalbe Magic Mary, Super Trail, Soft (2.4)
Tyre/RearSchwalbe Big Betty, Super Trail, Soft (2.4)
IncludedTubeless Valves & Sealant
Weight36.7 lbs / 16.65 kg (Size MD)
Sizing Information

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Small
High | Low
Medium
High | Low
Large
High | Low
Extra Large
High | Low
XX Large
High | Low
A. Reach430 | 425 mm460 | 455 mm485 | 480 mm510 | 505 mm535 | 530 mm
B. Stack619 | 624 mm619 | 624 mm628 | 633 mm637 | 642 mm646 | 651 mm
C. Effective Tt Length547 | 550 mm577 | 580 mm605 | 608 mm633 | 636 mm661 | 664 mm
D. Seat Tube Length360 mm390 mm430 mm460 mm490 mm
E. Effective St Angle79.6° | 79.1° mm78.8° | 78.3°78.1° | 77.6°77.5° | 77°77.2° | 76.7°
Saddle Height For Effective St Angle600 mm660 mm720 mm780 mm820 mm
Actual St Angle70.5° | 70°70.5° | 70°70.5° | 70°70.5° | 70°70.5° | 70°
Seat Tube Offset At Bb100 mm100 mm100 mm100 mm100 mm
F. Head Tube Length100 mm100 mm110 mm120 mm130 mm
G. Head Tube Angle63° | 62.5°63° | 62.5°63° | 62.5°63° | 62.5°63° | 62.5°
H. Chainstay Length446 | 448 mm446 | 448 mm446 | 448 mm452 | 454 mm452 | 454 mm
I. Wheelbase1227 | 1229 mm1257 | 1259 mm1287 | 1289 mm1322 | 1324 mm1352 | 1354 mm
J. Bottom Bracket Drop25 | 32 mm25 | 32 mm25 | 32 mm25 | 32 mm25 | 32 mm
K. Estimated Bb Height350 | 343 mm350 | 343 mm350 | 343 mm350 | 343 mm350 | 343 mm
L. Stand Over Height685 | 680 mm700 | 695 mm715 | 710 mm730 | 725 mm745 | 740 mm
M. Fork Offset44 mm44 mm44 mm44 mm44 mm
Professional Opinion


GIDDYUPSUSPENSIONDESIGN

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 23% progression and the most current evolution of our GiddyUp suspension kinematic, the Spire has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Spire has 170mm of rear wheel travel when used with the supplied 205mm x 65mm stroke shock. It is also possible to install a shorter, 205mm x 60mm stroke shock to decrease the rear wheel travel to 160mm if you are after a shorter travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
