Transition Smuggler Carbon MTB Complete Bike GX AXS Orchid

Season:2023

Brand:Transition

Code:dihcrOSXA.XG.BRC.GUMS.32.

Transition Smuggler Carbon MTB Complete Bike GX AXS Orchid

Image for colour illustration purposes, please see below for the list of components.

Transition Smuggler Carbon MTB Complete Bike GX AXS Orchid. Transition Smuggler may just be the most versatile bike in our lineup. With 29" wheels and 130mm rear and 140mm front travel suspension.

The Trusty Tool For Any Trail

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.

With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.

Inspiration

We went into the Smuggler project with the intention of creating a bike that had the quick and high-energy feel of the Spur, but with a bit more travel front and rear. What we ended up with was a perfect blend of the Spur and Sentinel in geometry, travel, capability, and weight. It's not all downhill in the PNW; there's plenty of single-track, technical trail, and meandering connective routes. The Smuggler is perfect for a day when your path comes across all of the above.

Progression In All The Right Places

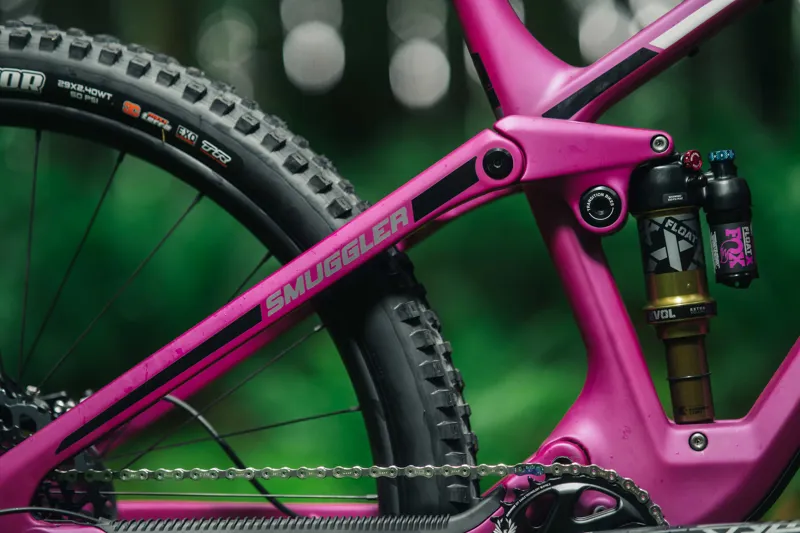

The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking to increase rear travel? Simply remove the travel reducer in the shock to bump the travel up to 140mm. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.

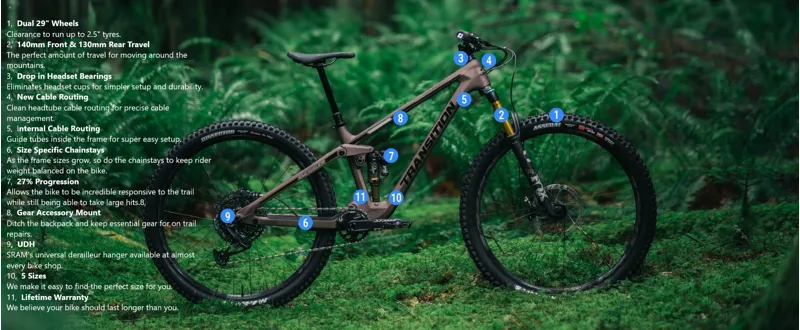

Frame Design Evolution

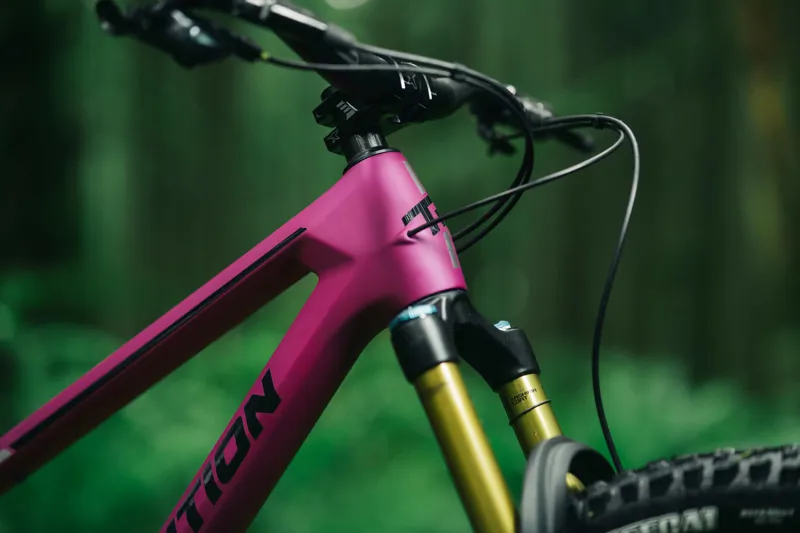

The Smuggler exhibits a few frame design features that further our push to have clean aesthetics while remaining easy to service. The most notable is the headtube area that provides better functionality and serviceability. The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view.




Please note:Delivery estimate is 4-5 working days from order.

Warranty Information

Lifetime Warranty

At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner as well as our stellar crash replacement program.

The Crash Replacement scheme offers 50% off rrp for the original owner. For secondhand owners we offer 40% off rrp.

Transition Warranty

Technical Information
Specifications
FrameSmuggler Carbon 130mm
Wheel Size29"
Rear ShockFox Float X Performance Elite
(210x50mm)
ForkFox Float 34 Grip 2 Performance Elite
(140mm)
HeadsetFSA NO.42/48/ACB
StemANVL Swage (40mm)
HandlebarANVL Mandrel Alloy 35
SM(800x20)
MD/LG/XL(800x30)
XXL(800x40)
GripsODI Elite Flow
SaddleSDG Bel Air V3
SeatpostOneUp Dropper Post
SM(150mm)
MD(180mm)
LG/XL/XXL(210mm)
BrakesSRAM Code Silver Stealth
RotorsSRAM Centerline (200/180mm)
ShifterSRAM GX AXS
DerailleurSRAM GX AXS
CassetteSRAM GX AXS (10-52t)
ChainSRAM GX AXS
CrankSRAM GX AXS
(170mm x 32T)
RimsRaceface Aeffect R
SpokesRaceface 2.0/1.7/2.0
HubsRaceface Trace 28H
Tyre/FrontMaxxis Assegai EXO+ (2.5)
Tyre/RearMaxxis Dissector 3C EXO+ (2.4)
IncludedSRAM AXS Battery Charger Tubeless Valves & Sealant
WeightTBD
Sizing Information

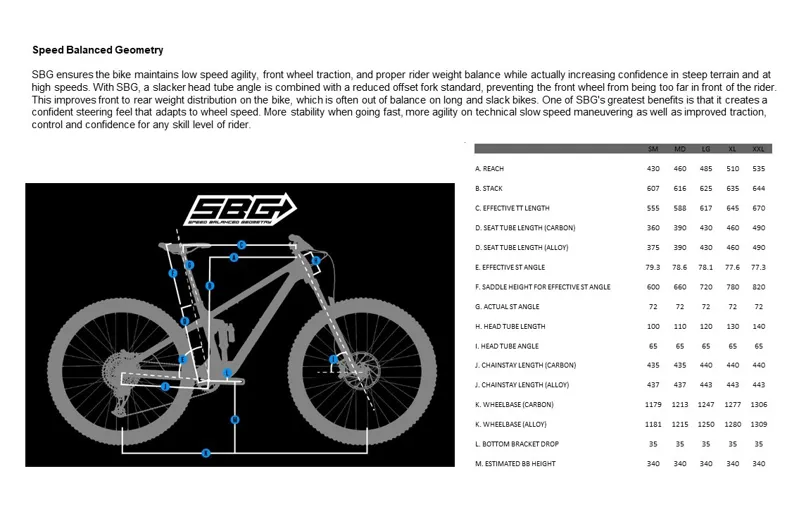

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
SMMDLGXLXXL
A. REACH430460485510535
B. STACK607616625635644
C. EFFECTIVE TT LENGTH555588617645670
D. SEAT TUBE LENGTH (CARBON)360390430460490
D. SEAT TUBE LENGTH (ALLOY)375390430460490
E. EFFECTIVE ST ANGLE79.378.678.177.677.3
F. SADDLE HEIGHT FOR EFFECTIVE ST ANGLE600660720780820
G. ACTUAL ST ANGLE7272727272
H. HEAD TUBE LENGTH100110120130140
I. HEAD TUBE ANGLE6565656565
J. CHAINSTAY LENGTH (CARBON)435435440440440
J. CHAINSTAY LENGTH (ALLOY)437437443443443
K. WHEELBASE (CARBON)11791213124712771306
K. WHEELBASE (ALLOY)11811215125012801309
L. BOTTOM BRACKET DROP3535353535
M. ESTIMATED BB HEIGHT340340340340340
