THOK TK01 Mod D MTB Complete Ebike Grey Red

Season:2022

Brand:THOK

Code:THK.CB.TK01.MDGRYRED

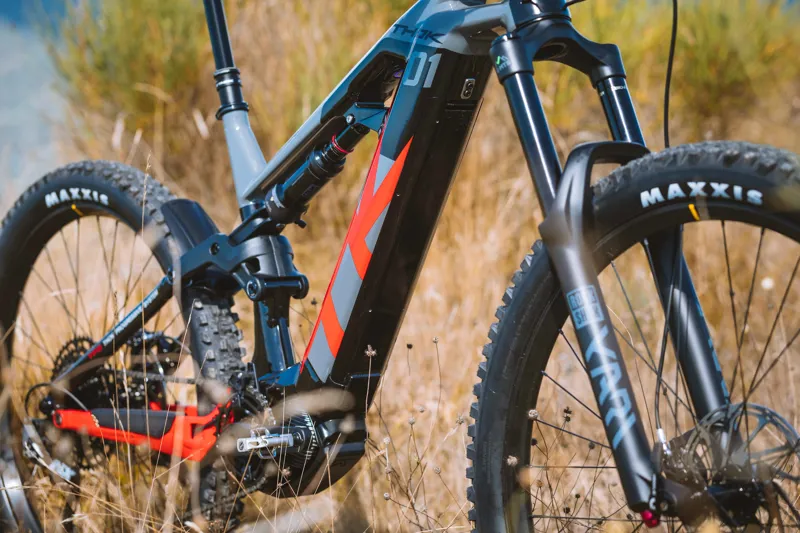

THOK TK01 Mod D MTB Complete Ebike Grey Red

Image for colour illustration purposes, please see below for the list of components.

THOK TK01 Mod D MTB Complete Ebike Grey Red. 170mm Enduro Ebike. Designed for extreem riding with mullet wheel platform. Shimano EP8 motor with 630 watt battery. Rock Shox Yary 170mm front fork. Sram Eagle drive train

The TK01 extends your rides and allows you to enjoy even the most extreme trails while having fun in safety.

170mm travel, mullet wheels, 4-piston brakes, integrated 630 Wh battery, new Shimano EP8 motor.

The "Precise Front End" for head tube tapered 1.8 marks an epochal change in the steering area of E-MTBs.

A "steamroller" without compromising agility! With 29" and 27.5" mullet wheels, it is the ideal companion for fans of adrenalinic activities and strong sensations that E-Enduro can give.

TCG “THOK CONTROL GEOMETRY” PLUS

It’s the innovative geometry from THOK represented by an elongated top tube "Viper head", and a new standard tapered head tube 1.8, with 64.5° steering angle, straight seat tube of 75.5°, ensuring riding comfort and total control on technical singletracks.

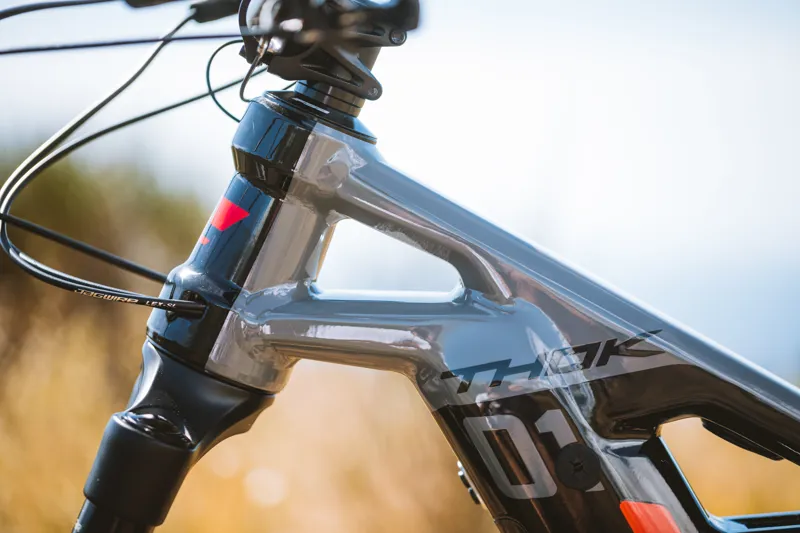

PFE “PRECISE FRONT END”

The new alloy hydroformed “Viper Head” top-tube, projected for the innovative tapered head-tube 1.8, and the rear connection to the verticalized down-tube, revolutionize the steering-area concept. Supreme stiffness and riding accuracy at the forefront with ebike-leading technologies.

LOWERED STANDOVER

Improved frame stiffness, increased handling, and easier saddle's height regulation.

THOK DT INTEGRATED BATTERY

The special design of the down tube and its vertical position integrate the new 630 Wh battery, allowing to place it close to the engine, in order to ensure a low center of gravity - a highlight of THOK E-Bikes' philosophy. This means longer rides uphill with the same fun on downhill trails. Rideability, handling, and reactivity to stay true to the claim “Performance First”.

SHIMANO EP8 ENGINE

EP8 is the revolutionary second generation engine produced by Shimano. With its 2.6 kg weight it is, to date, one of the lightest drive units available on the market and, thanks to the increase of the maximum torque to 85 Nm and the reduction of friction by 36%, it ensures great riding power. pedaling with fluid, direct and natural delivery, guaranteeing complete control of the bike.Combined with the E-Tube Project app, it is fully customizable to best adapt to each trail and to the user's needs.

TPS “THOK PROGRESSIVE SYSTEM” OVERSIZE

THOK's successfull rear Progressive System, designed for e-MTB, uses a metric rear shock and a dedicated rocker. The progressive suspension, together with the oversize chainstays, ensure rigidity, better handling, and perfect traction on all types of terrain.

THOK DISK MOUNT

For greater efficiency and powerful braking, the brake caliper has been mounted directly on the frame (without any adapter).

MULLET WHEELS

Front and rear wheels have different diameters, respectively 29" and 27,5”. In combination with the new TCG Plus technology, it allows to easily overcome challenging obstacles and provide optimal traction and ride-ability in every situation.

"E-ENDURO" SET UP

Equipped with the latest generation components, the TK01 is the uncompromising e-enduro:

  • Fork: Rock Shox Yary 170mm
  • Shock absorber: Rock Shox Deluxe R 170mm
  • Brakes: SRAM GUIDE T with 4 pistons
  • New SHIMANO "concave" switch unit for assist

COMFY ENGINE START

The “EASY TOUCH” button is placed under the top tube in a protected but easily-accessible position.

DETAILS

The TK01 is equipped with a polypropylene rear fender and a light-impact-resistant engine cover.

ACCESSORIES (NOT INCLUDED)

Available for purchase:

  • "T-Wings" mudguard fins in shockproof TPE
  • Carbon battery and engine covers made in Italy
  • Adapter to recharge the battery when removed from the frame

To conform to Driver and Vehicle Standards Agency The maximum assisted speed of the THOK TK01 is 15.5 mph (25km/h) and the electric motor has a maximum power output of 250 watts.

Technical Information
Specifications
FrameAlloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
SizesS - M - L - XL
Power SupplySHIMANO EP8 - 85 Nm (250W) - 630Wh integrated Shimano battery
Display & ShifterCyclo Computer SC-E7000 with 1,39" screen - ergonomic remote SW-E7000 (Eco, Trail, Boost e Power-Walk)
ForkROCK SHOX - DOMAIN 29" Boost, DebonAir 170 mm, E-MTB, 44 OFFSET, 1.8 Tapered.
Rear ShockROCK SHOX - DELUXE Select R , THOK Custom tuned
BrakesSRAM - Guide T, 4 pistons calliper, 200mm Centreline rotor
Rear DerailleurSRAM - NX, 12s
ShifterSRAM - SX Eagle Trigger, 12s
CassetteSRAM - Eagle 12s (11-50)
ChainSRAM - Eagle 12s
CrankFSA 165mm - chainring 34T
WheelsTHOK Drift - 29"x30 mm front & 27.5"x35 mm rear
StemTHOK forged, 35mm front clamp oversize, 37mm length
HandlebarTHOK 35mm, rise 20mm, 780mm width
GripsTHOK - Lock-On grip, regular size
TiresMAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
SeatpostTHOK telescopic dropper post (125mm size S - 150mm size M - 170mm sizes L and XL)
SaddleTHOK Fit in Chromo
PedalsPedals in polyethylene
Weight24.8 Kg Size M without pedals
Sizing Information
SMLXL
A- Top Tube Length, Horizontal582mm600mm629mm660mm
B- Reach423mm439mm464mm491mm
C- Stack623mm623mm638mm654mm
D- Seat Tube Length - centre to Top385mm415mm450mm495mm
E- ChainStay Length453mm453mm453mm453mm
F- Head Tube Angle64.5°64.5°64.5°64.5°
G- Seat Tube Angle75.5°75.5°75.5°75.5°
H- BB Drop15mm15mm15mm15mm
I- Wheel Base1212mm1233mm1265mm1298mm
K- Head Tube Length105mm115mm131mm149mm
L- Fork Offset44mm44mm44mm44mm
M- Bottom Bracket Height355mm355mm355mm355mm
Handlebar Width780mm780mm780mm780mm
Stem Length37mm37mm37mm37mm
Crank Length165mm165mm165mm165mm
Dropper125mm150mm170mm170mm
Standover783mm783mm783mm783mm
Trail133.6mm133.6mm133.6mm133.6mm

SizeSMLXL
Height154 - 167cm168- 177cm178- 184 cm185cm and over

This size table based on your height is only a suggestion.The optimal frame size also depends on other physical characteristics and personal riding style.
